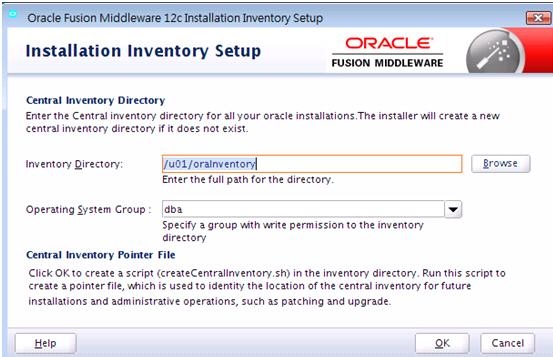

Oracle HTTP Server 12c (12.1.3) standalone installation Procedures on Linux

Assume oracle user has been added with group dba.

[oracle@ Danbrother ~]$ cat /etc/security/limits.conf

# For existing ias components (10g)
cd /u01/oracle/product/10.2.0/ohs/opmn/bin
./opmnctl stopall && opmnctl startall
./opmnctl status -l
>>
Processes in Instance: standalone
-------------------+--------------------+---------+---------
ias-component      | process-type       |     pid | status
-------------------+--------------------+---------+---------
HTTP_Server        | HTTP_Server        |   29294 | Alive
LogLoader          | logloaderd         |     N/A | Down
dcm-daemon         | dcm-daemon         |     N/A | Down
# For HTTP_Server process-type (10g)
/u01/oracle/product/10.2.0/ohs/opmn/bin/opmnctl restartproc process-type=HTTP_Server


------------------------------------------------------------------------------------------------------------------
# For existing ias components (11g)
cd  /u01/Middleware/asinst_1/bin
./opmnctl stopall && opmnctl startall
# For OHS  process-type (11g)
 /u01/Middleware/asinst_1/bin/opmnctl restartproc process-type=OHS



Issue:
[OHS] [INCIDENT_ERROR:32] [OHS-2171] [http_core.c]  NZ Library Error: SSL negotiation error [Hint: too restrictive SSLCipherSuite]
Solution:
Keep the HTTP Listen Port enabled by configuring it to only work against a loopback IP address, which cannot be accessed outside the local machine.
1.Update $ORACLE_INSTANCE/config/OHS/ohs1/httpd.conf
# Add HTTP Listen Port (unused) on loopback address.
e.g.
Listen 127.0.0.1:9999

Oracle11g HTTP Server Installation Procedure (On Linux)
1. Download & Install Java SE Development Kit 6u37 :
http://download.oracle.com/otn-pub/java/jdk/6u37-b06/jdk-6u37-linux-x64-rpm.bin
Also download & Install Java SE Runtime Environment 6 Update 37:
http://download.oracle.com/otn-pub/java/jdk/6u37-b06/jre-6u37-linux-x64-rpm.bin

-- Check Java Version

For the pure Oracle 11g HTTP Server Installation, it's possoble!
Here are the steps:
1.  Download and Install Weblogic Server
     a. run c:\download\wls1032_win32.exe
2.  Download Portal, Forms, Reports and Discoverer (11.1.1.2.0) which constains HTTP
      Server and Enterprise Manager Fusion Middleware Control that are required.
     a. Copy Disk2, Disk3, and Disk4 Into the same folder of Disk1
     b. run c:\download\ofm_pfrd_win_11.1.1.2.0_32_disk1_1of1\Disk1\install\win32
         \setup.exe
     c.  Check All Installation options except Portal, Forms and Discoverer
     d. Ignore the error of "Creating ASInstance" and Cancel the Installation directly.
3. Download Web-Tier Utilities:
     a. run c:\download\ofm_webtier_win_1.1.2.0_32_disk1_1of1\Disk\install\win32
          \setup.exe
    b. weblogic port is 7001 by default

4. Go to http://127.0.0.1:7001/em to logon to Oracle Enterprise Manager 11g Fusion Middleware Control with the login account of "weblogic"

1. Go to the Oracle Fusion Middle Home Directory with the subdirectory of "bin"
    e.g.  cd c:\oracle\Middleware\Oracle_WT1\bin
2. set ORACLE_HOME=c:\oracle\Middleware


There is a trick that httpd port under 1024 need to run as root initially. (e.g. port=80)
Here's the configuration steps:
1.  #switch to root user by:
     su -
2.  export ORACLE_HOME=/u01/oracle/product/10.2.0/ohs
      cd $ORACLE_HOME/Apache/bin
3.  # Change the .apachectl file owner to root
     #  (be careful for the "." which is a hidden file)
       chown root .apachectl
4.  chmod 6750 .apachectl
5. Verify the file permission:
      ls -al .apachectl
       -rwsr-s--- 1 root oinstall 18591 Dec 20  2004 .apachectl
6.  Restart OHS:
      su - oracle
     cd /u01/oracle/product/10.2.0/ohs/opmn/bin
     ./opmnctl stopall
     ./opmnctl startall



export ORACLE_HOME=/u01/oracle/product/10.2.0/ohs
export LD_LIBRARY_PATH=$ORACLE_HOME/lib
export PERL5LIB=$ORACLE_HOME/perl/lib/5.6.1
export PATH=$ORACLE_HOME/Apache/modplsql/conf:$ORACLE_HOME/perl/bin:$PATH
cd $ORACLE_HOME/Apache/modplsql/conf
perl dadTool.pl -o
cat dads.conf
>>
  SetHandler pls_handler
  Order deny,allow
  Allow from all
  AllowOverride None
  PlsqlDatabaseUsername         scott
    PlsqlDatabasePassword          @BeKLnrm2uGAwF4GU5kKIoAQ=
  PlsqlDatabaseConnectString    testdb
  PlsqlAuthenticationMode       Basic
  PlsqlDefaultPage              home
  PlsqlDocumentTablename        wwdoc_document
  PlsqlDocumentPath             docs
  PlsqlDocumentProcedure        wwdoc_process.process_download
  PlsqlNlsLanguage              "TRADITIONAL CHINESE_TAIWAN.ZHT16MSWIN950"
